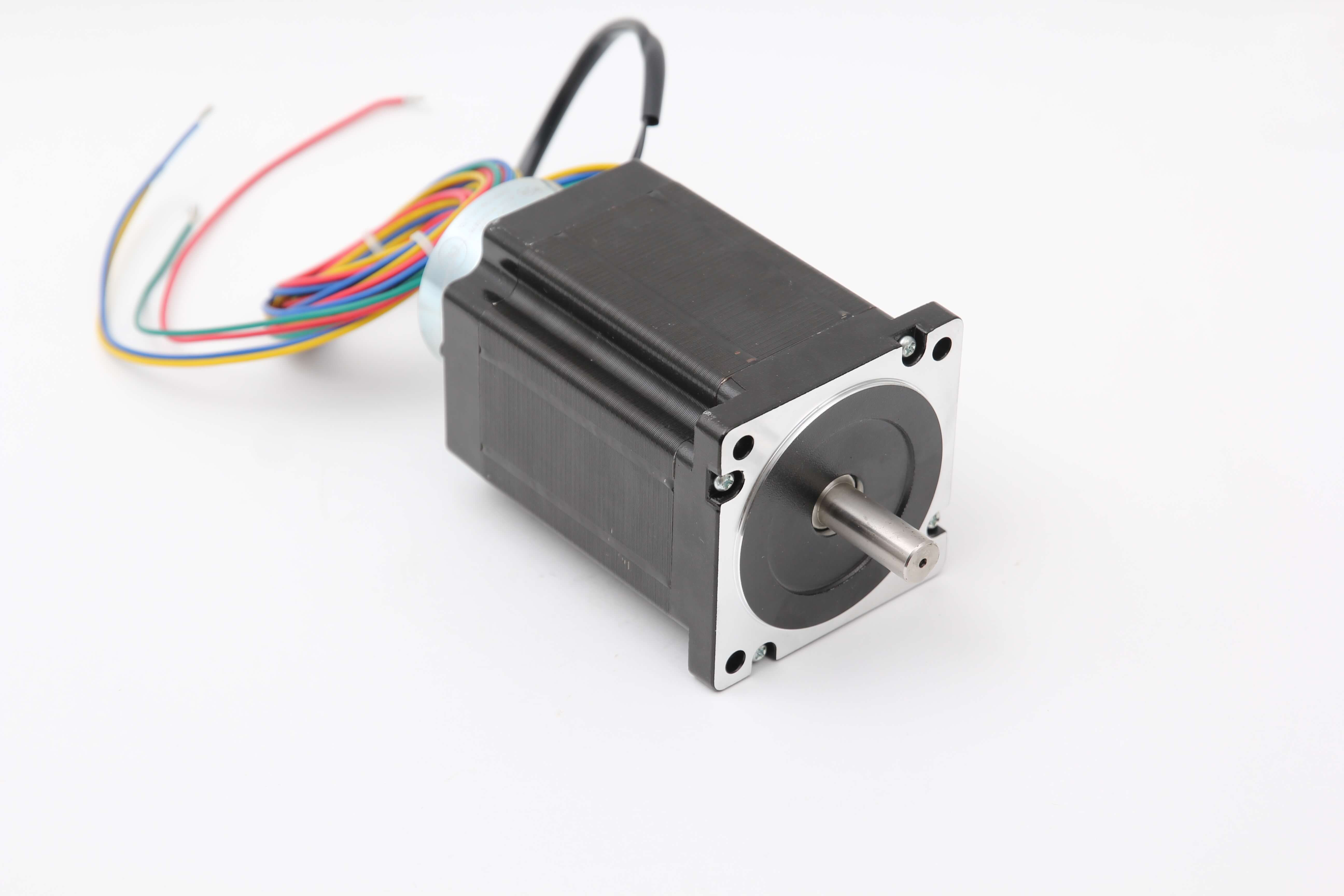

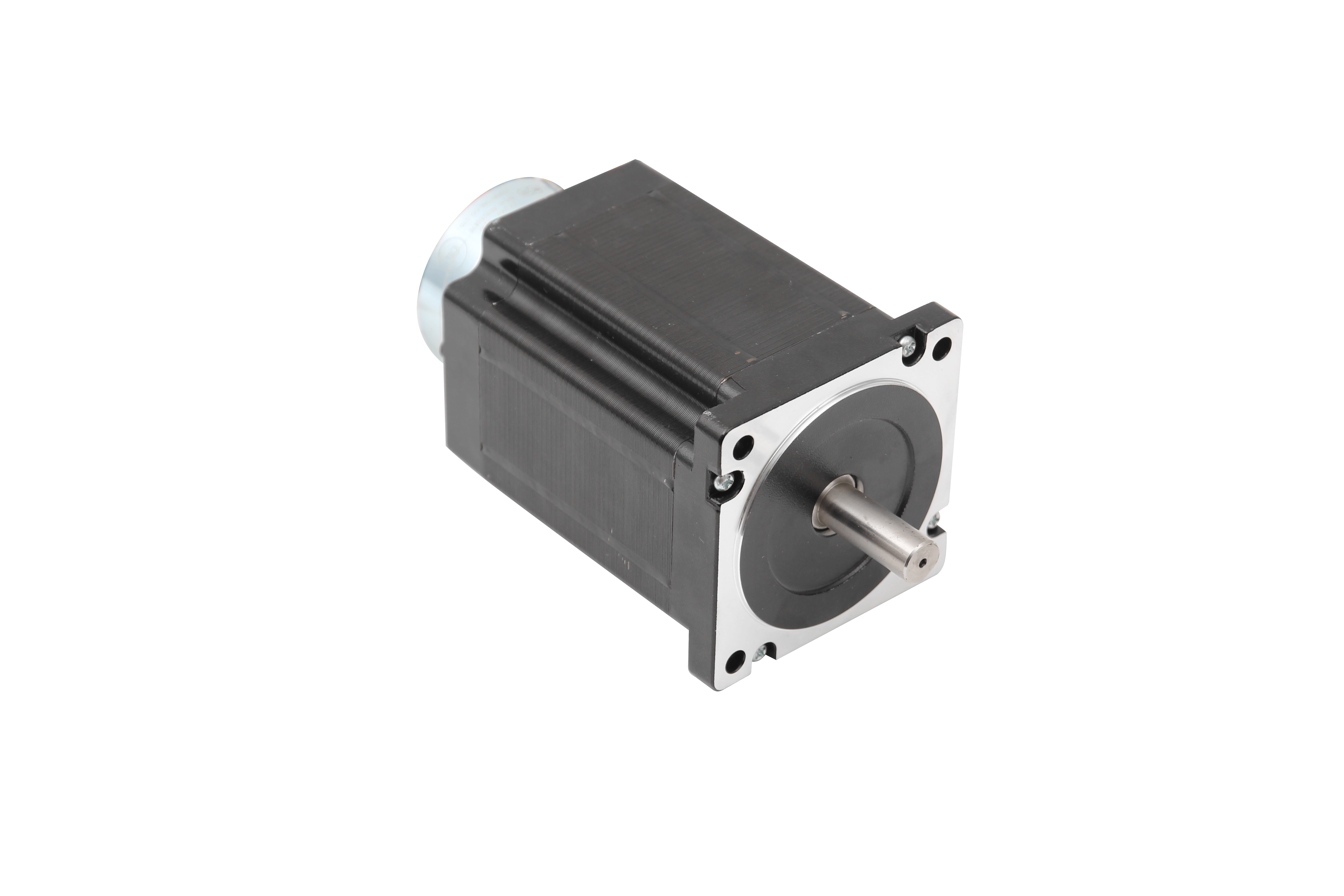

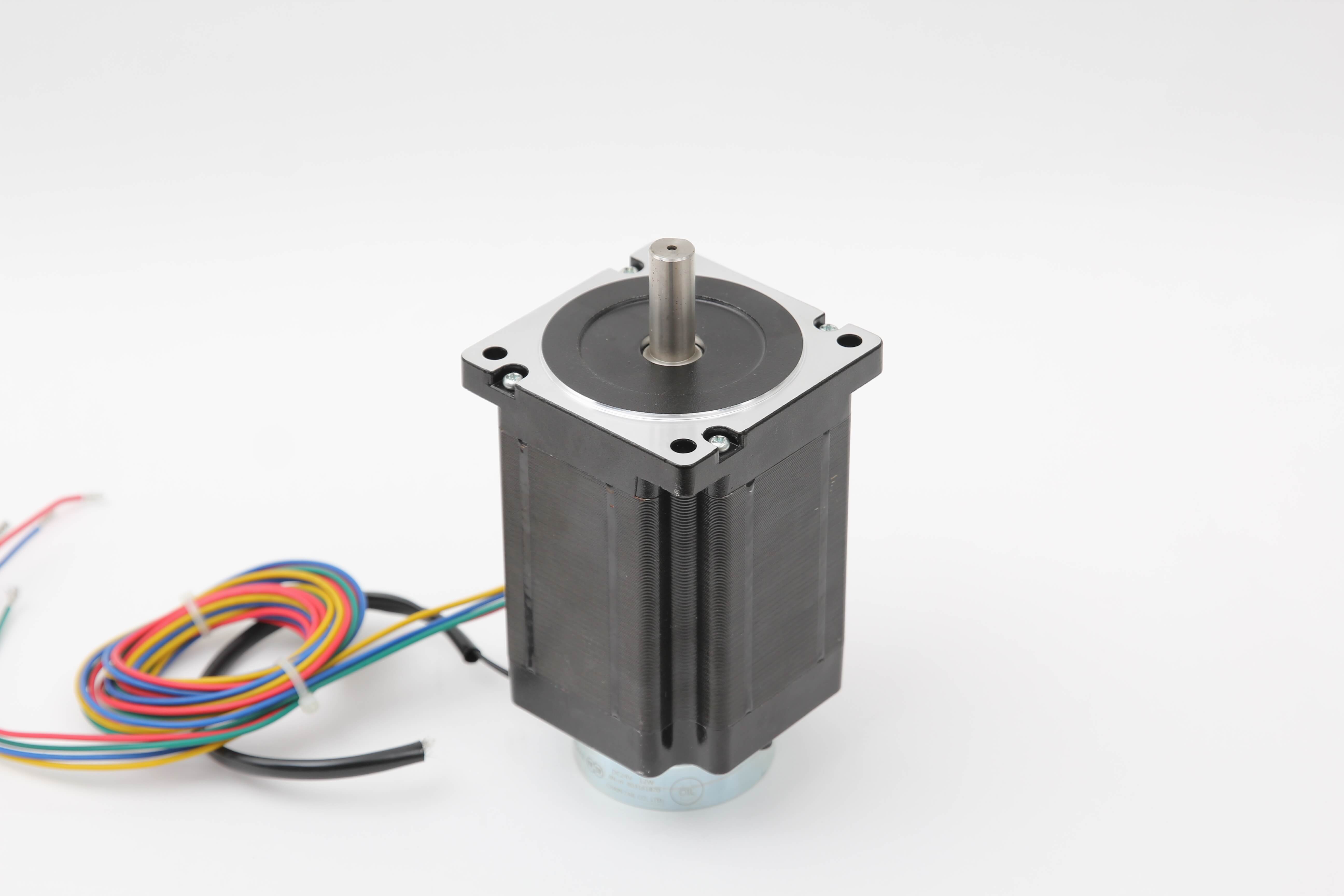

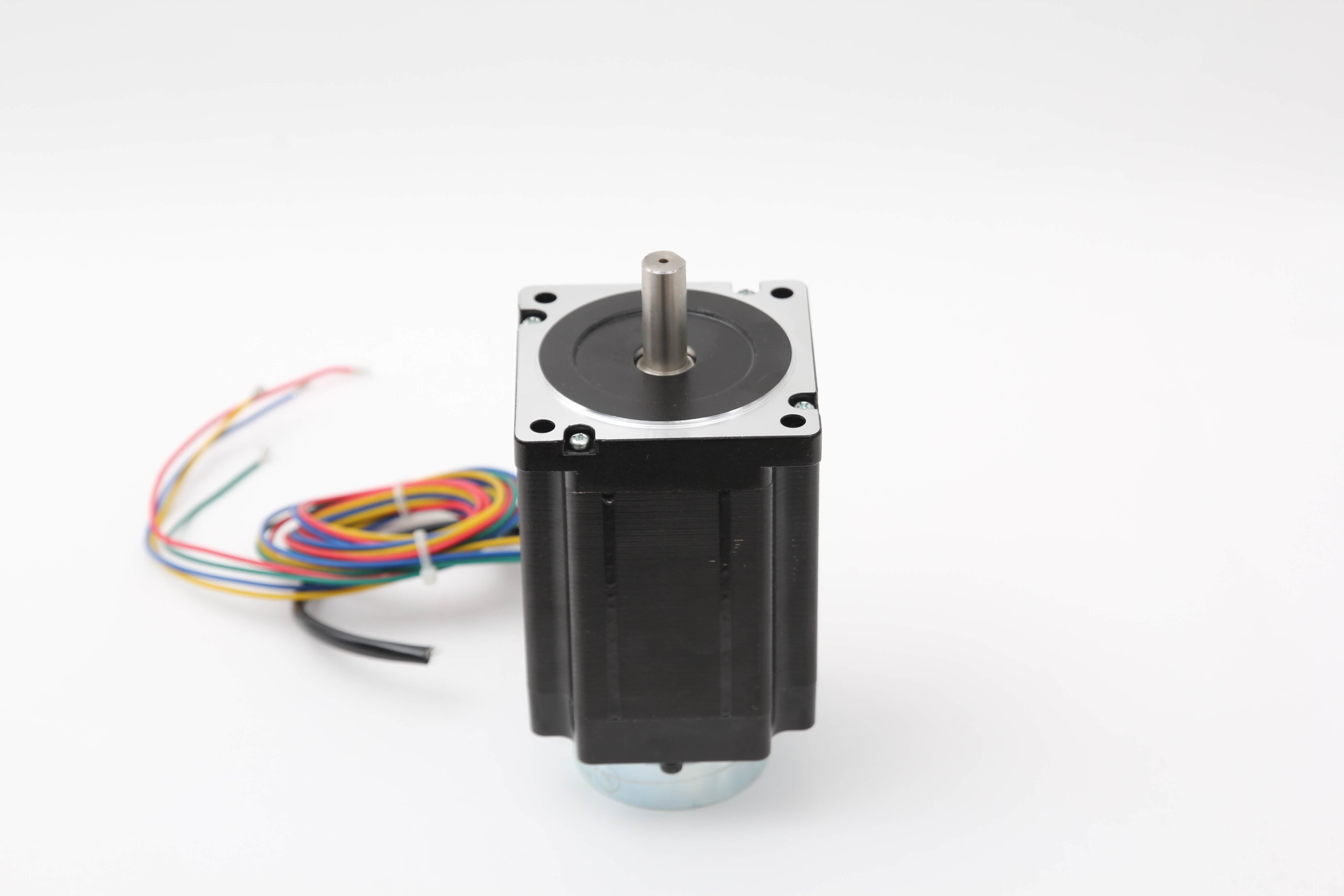

Brushless dc servo motorBrushless dcstepping motor
| Model | Step angle | Motor Length (L) | Rated voltage | Rated Current | Phase Resistance | Phase Inductance | Holding Torque | Lead Wire | Rotor inertia | Motor Weight |
| ( °) | mm | ( V) | (A) | ( Ω ) | (m H) | ( N m) | (NO) | ( kg·cm²) | ( kg ) | |
| 86H280-308-ZD | 1.8 | 76 | 3.6 | 0.8 | 3.6 | 4.5 | 8 | 1.4 | 2.3 | |
| 86H2118-308-ZD | 113 | 3.6 | 0.87 | 4.4 | 8.5 | 8 | 2.8 | 3.8 |

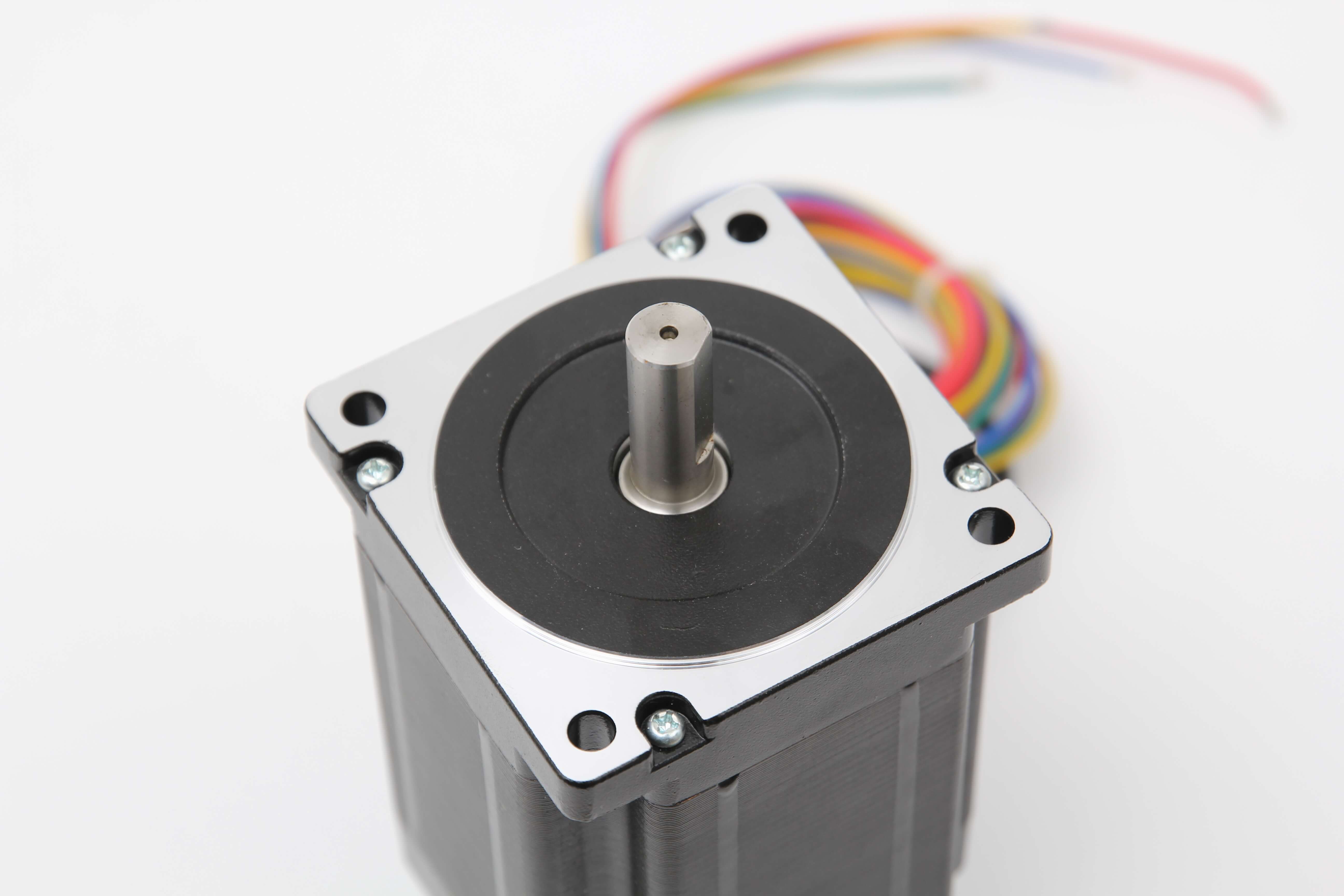

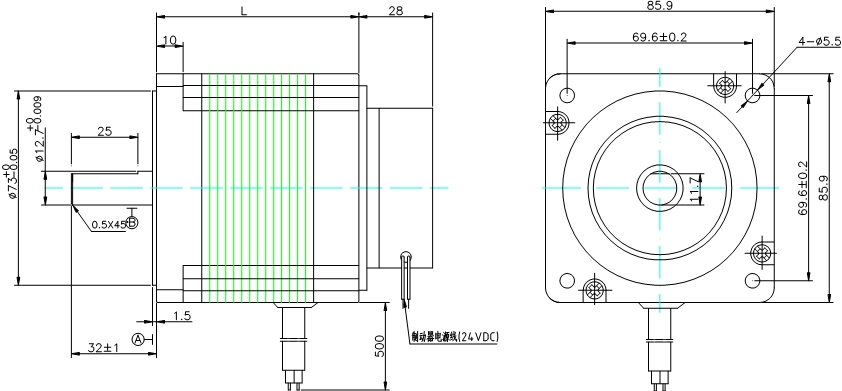

| Mode | shaft | keyway |
| 86H280-308 | ￠12.7 | platform1X25 |
| 86H2118-308 | ￠12.7 | platform1X25 |

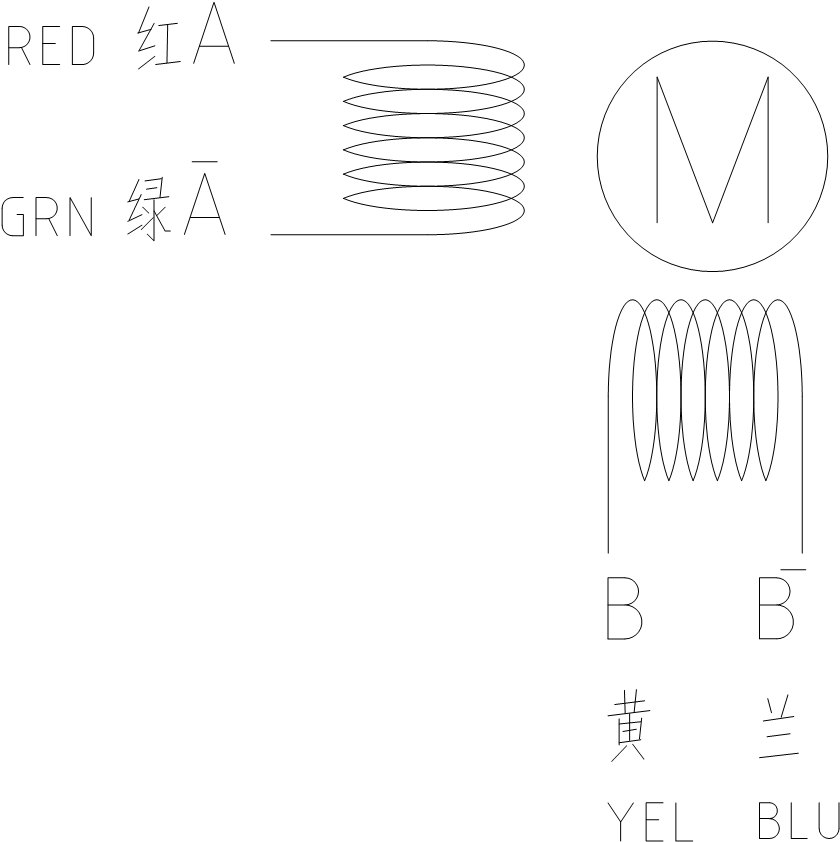

8-wiremotorwiring
| connection method | phase sequence | color | Corresponds to the phase sequence of the drive |
| In series connection | A | 红 | A |
| C- | 黑 | A- | |
| B | 白 | B | |
| D- | 绿 | B- | |
| A- and C Connected dangling | Yellow and blue are suspended | ||
| B- and D Connected dangling | Brown and orange are suspended | ||
| And the connecting method | AC | red and blue | A |
| AC- | yellow and black | A- | |
| BD | white and brown | B | |
| BD- | orange and green | B- |
