brushless DC motor Brushless DC motor

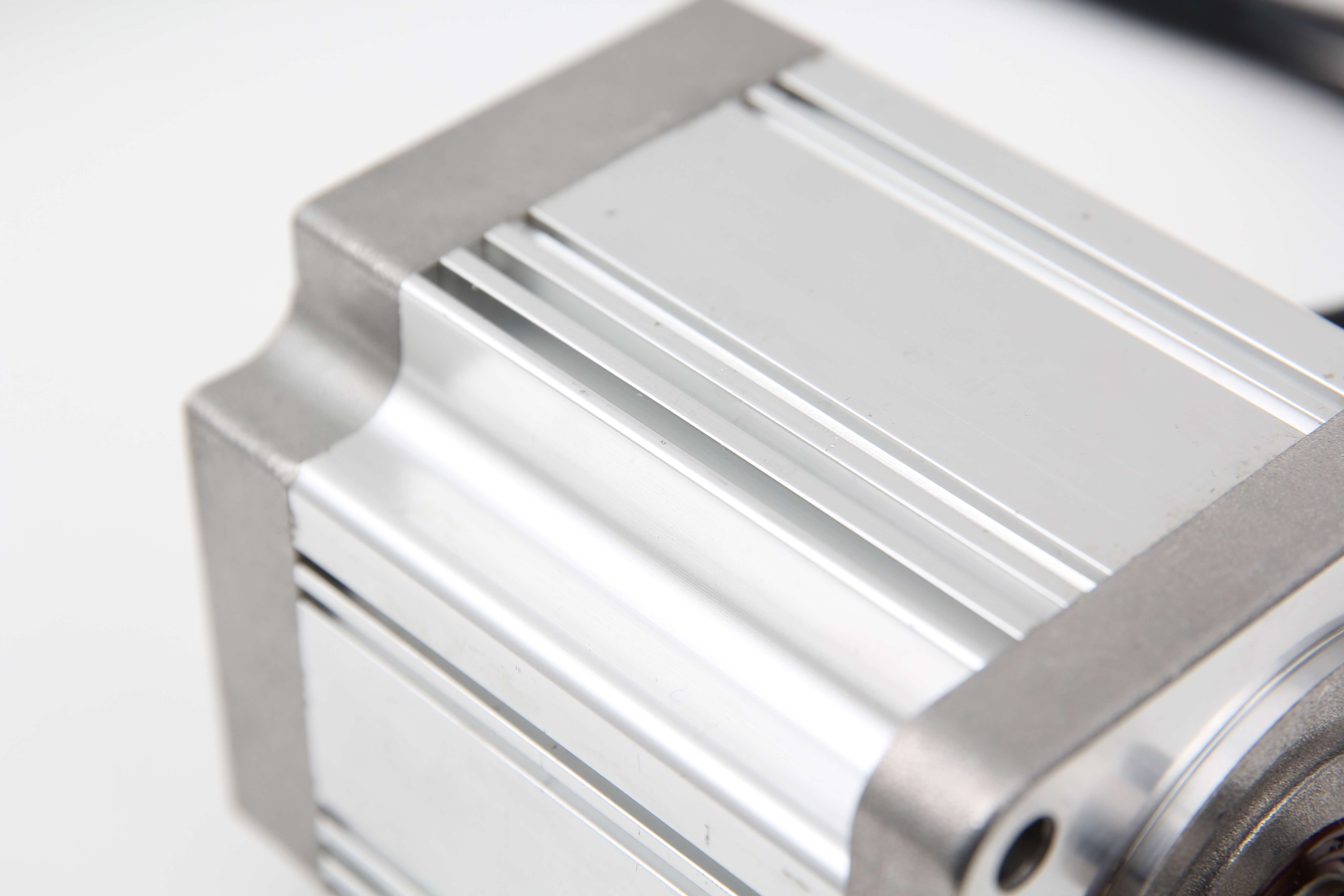

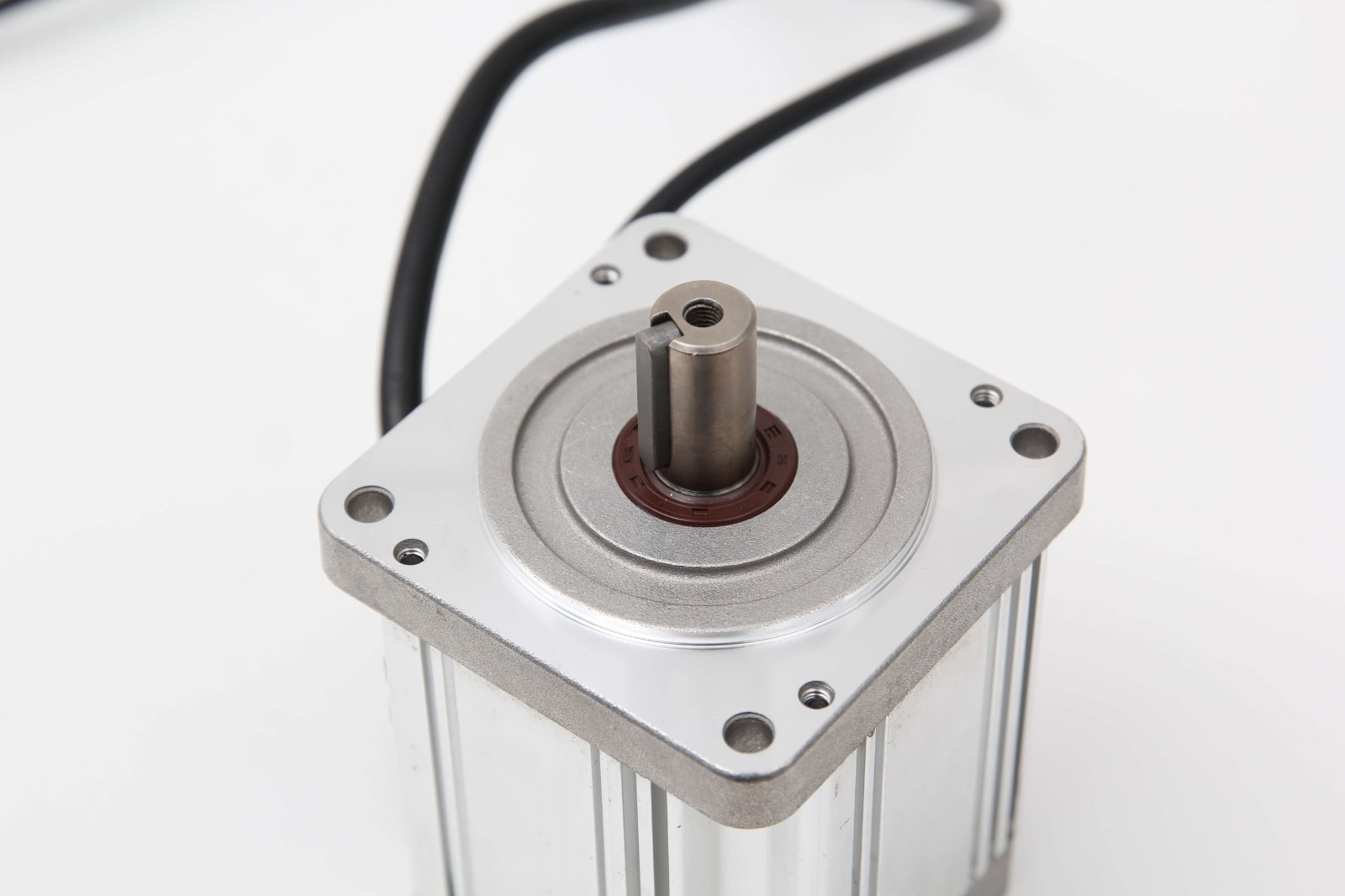

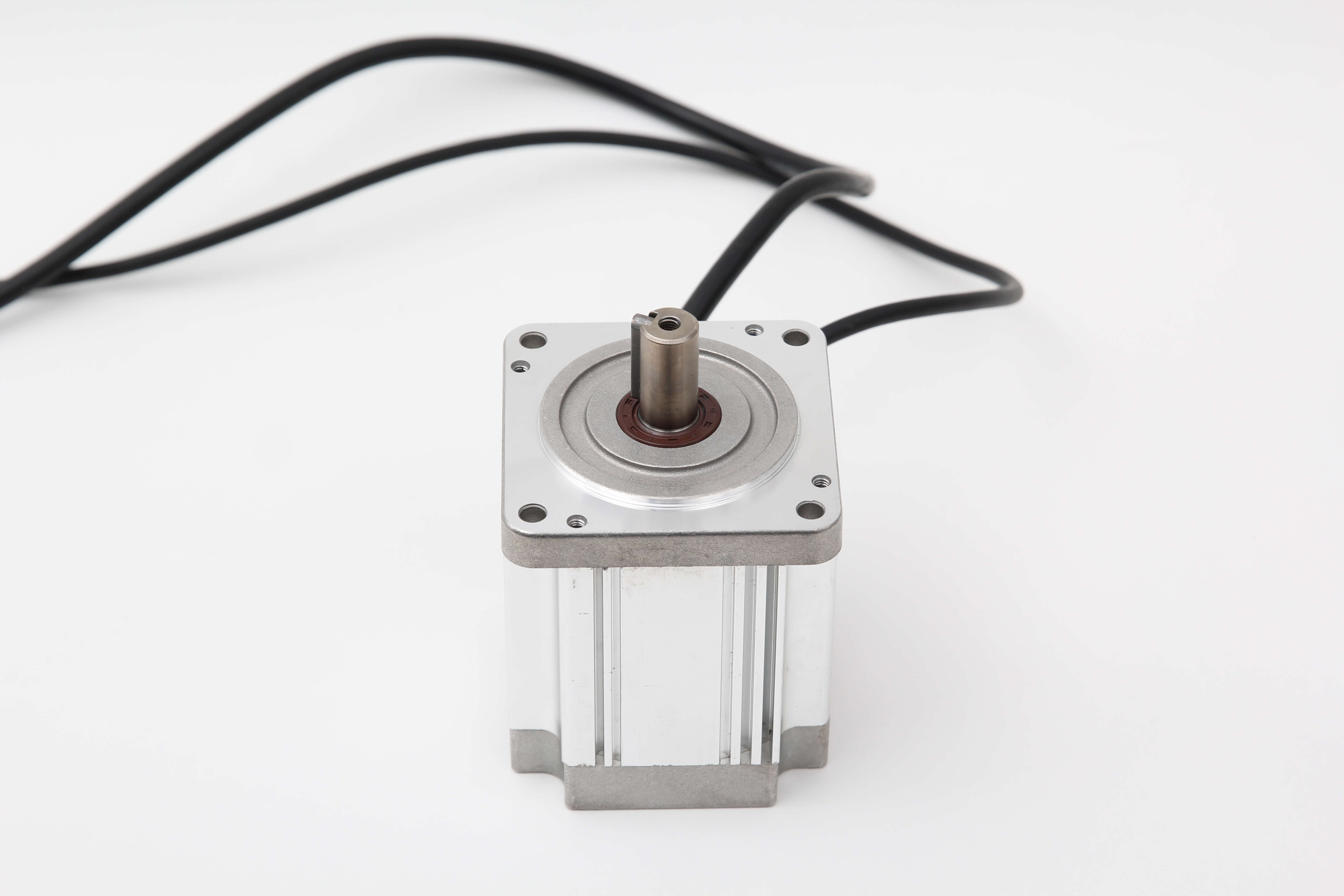

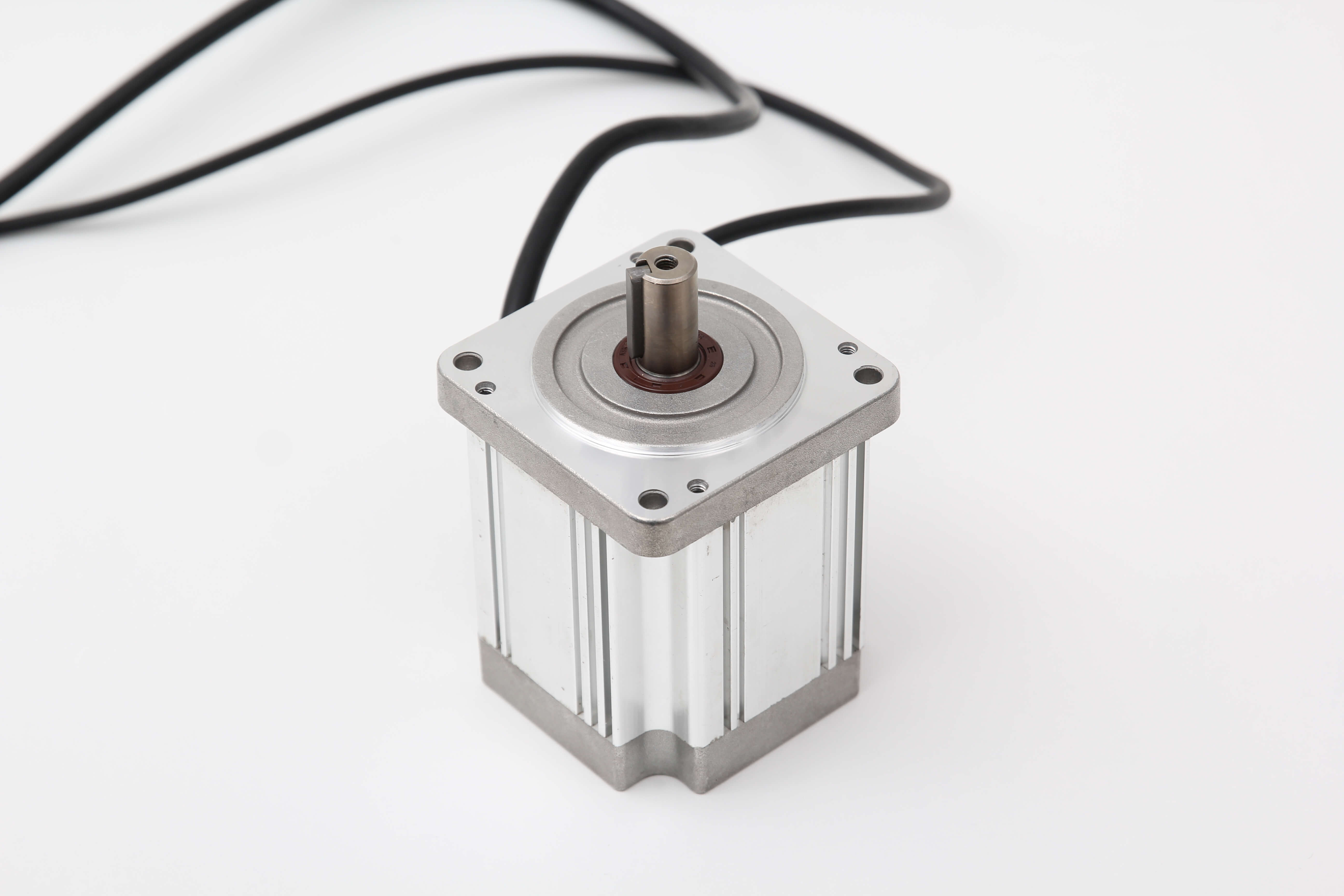

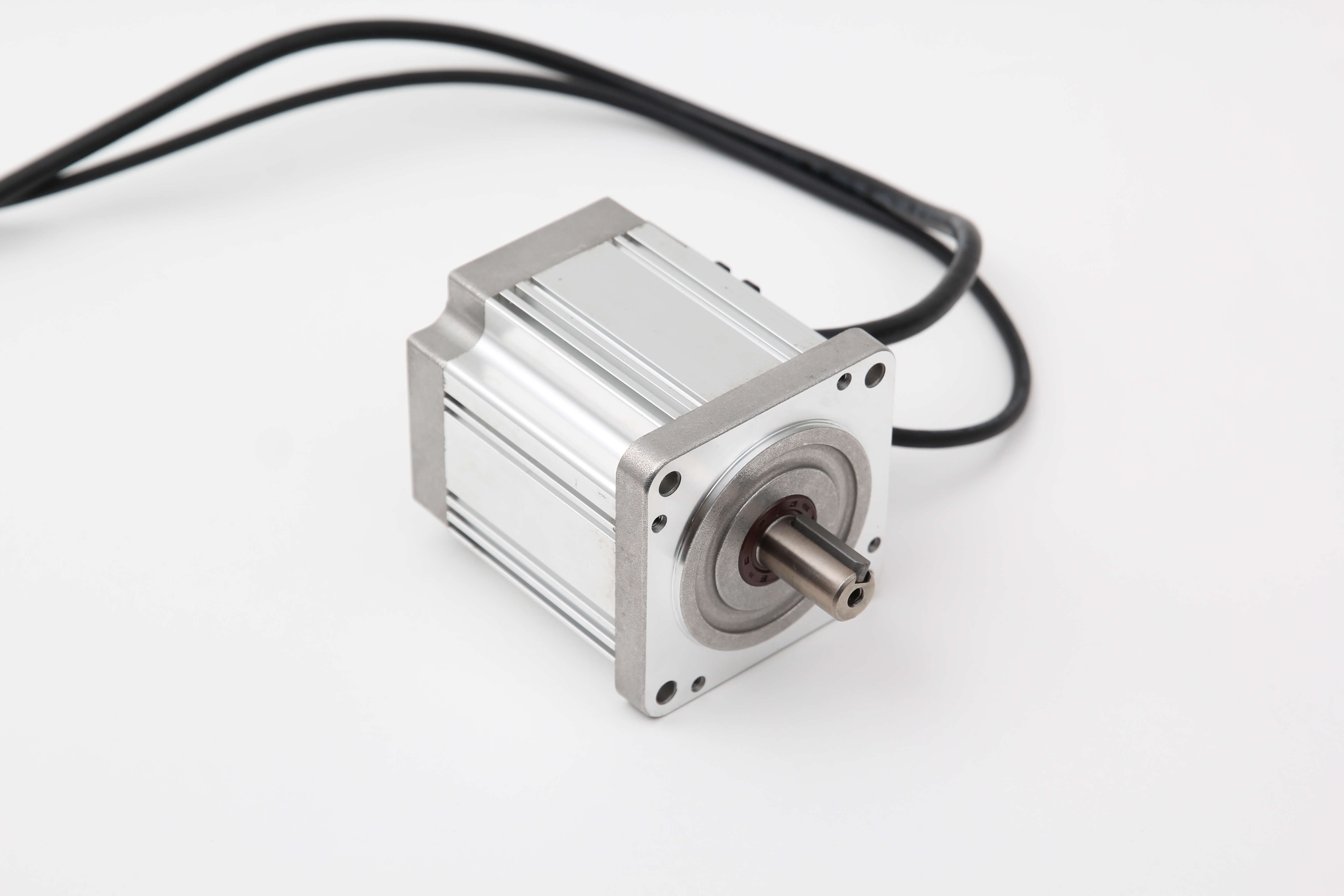

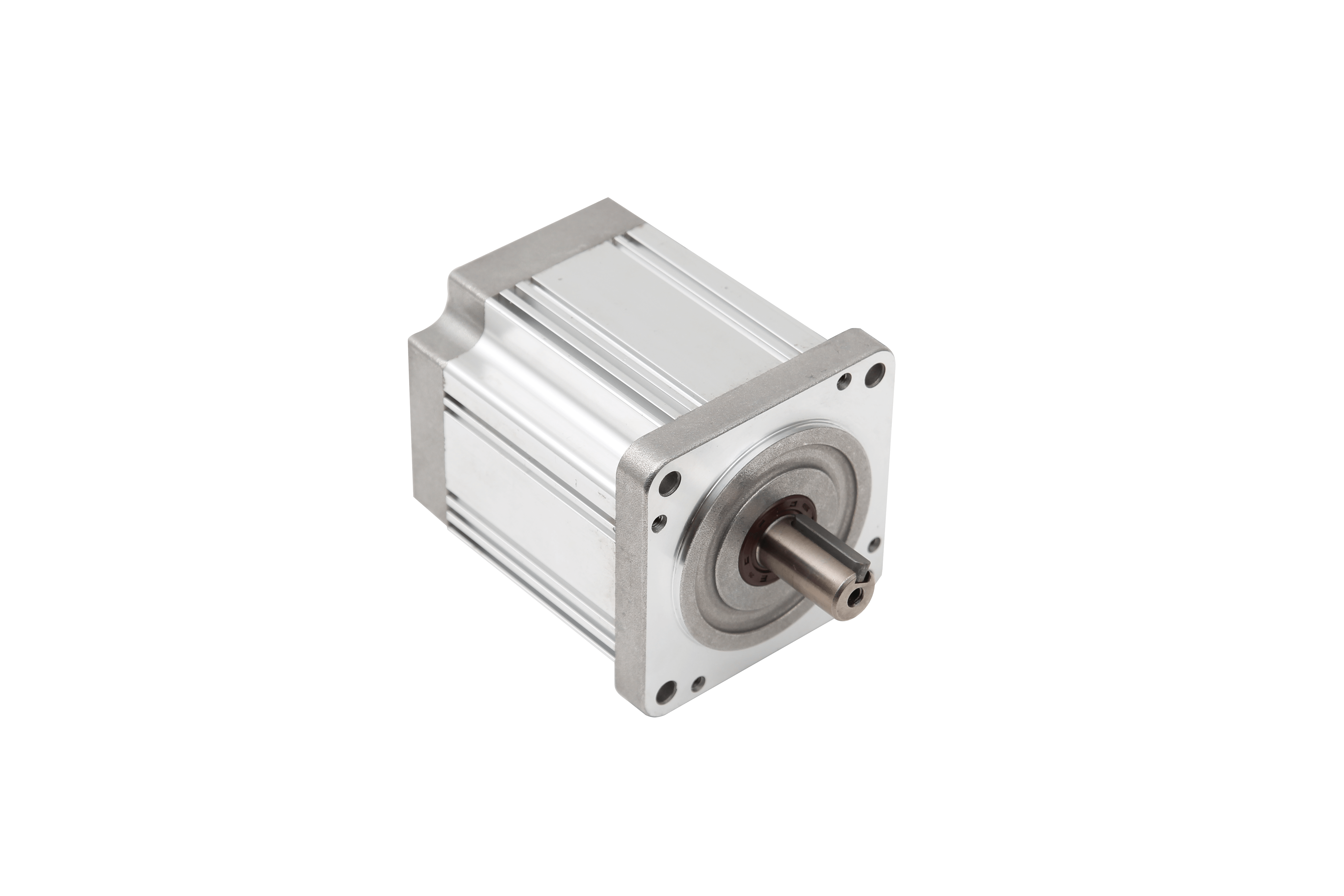

80BF brushless DC motor
keyword : 80BF brushless DC motor
description : Products are widely used in the field of industrial automation, in addition to a certain domestic market share, but also exported to foreign countries.
18151207805

General Specifications

Winding TypeStar
electrical degree120℃ electrical angle
Insulation ClassB
Ambient Temperature Range-20℃~+50℃
Insulation Resistance100MΩMin.500VC DC
Dielectric Strength700V AC 1 minute


Electrical Specifications

Model80BF90-44080BF90-640-80BF120-64080BF140-64080BF160-640
Number of Poles4
Number of Phases3
Nominal voltage VDC48310310310310
Rated speed        RPM3000
Rated Torque      N-m111.522.5
RatedCurrent    Amps8.71.42.12.73.4
OutputPower       Watts313313470627785
Peak Tourque     N-m334.567.5
Peak Current    Amps26.14.26.38.110.2
Torqueconstant   N-m/A0.120.720.720.720.72
BackEMF   V/kRPM8.255555555
Rotor inertia   g·cm²4204206308401050
Body Length (L)    mm9292125145158
Mass  kg1.851.852.533.5

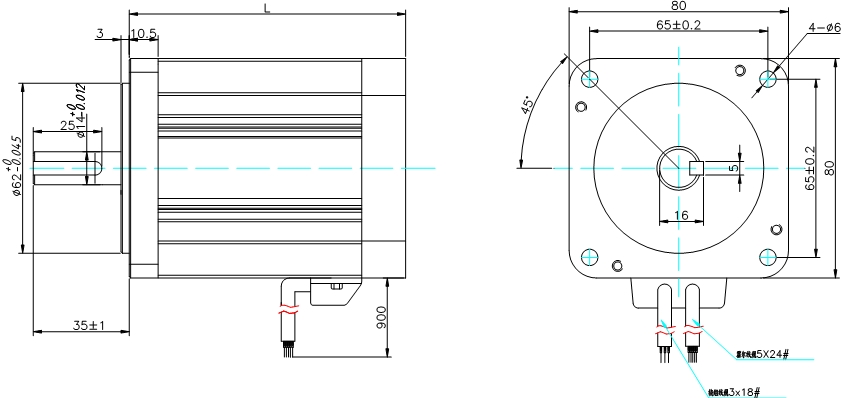

Outside drawing

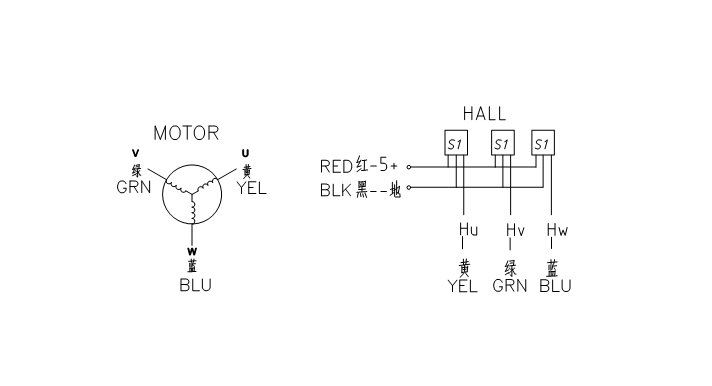

Wiring diagram

1556267844(1)
