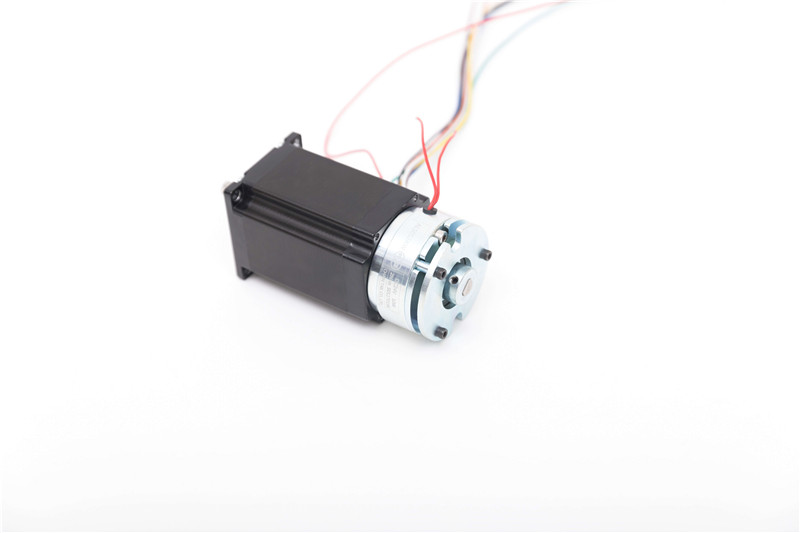

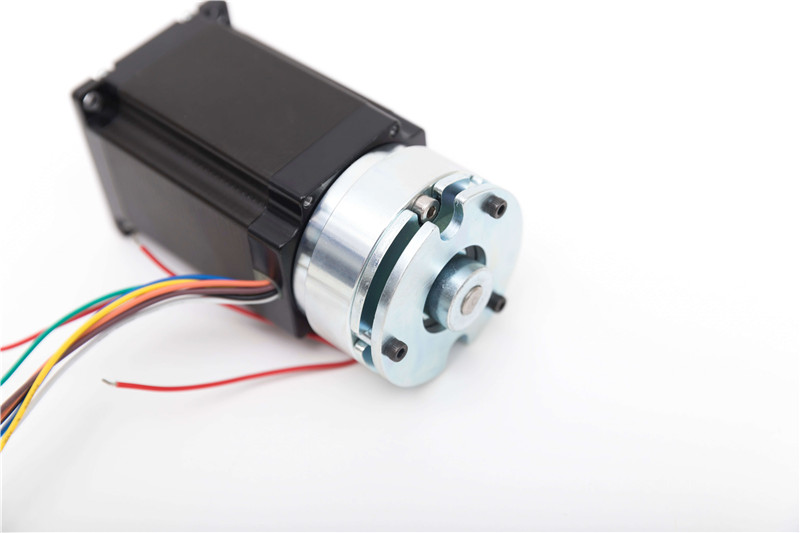

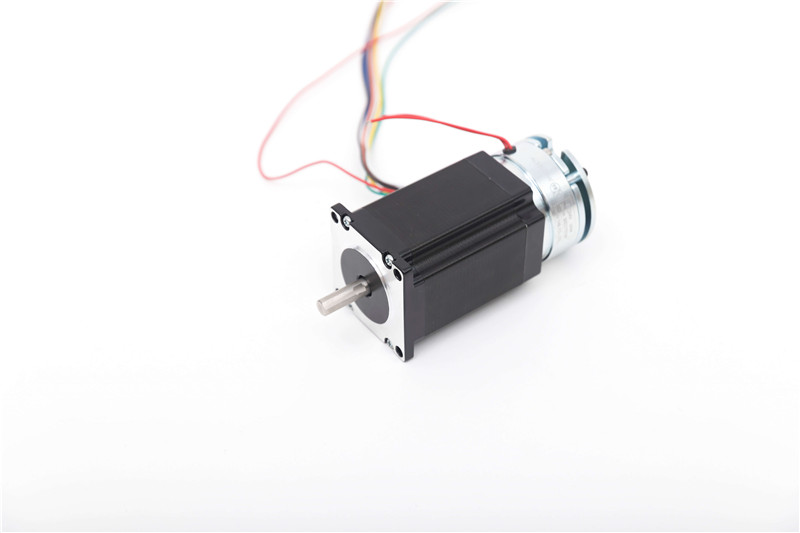

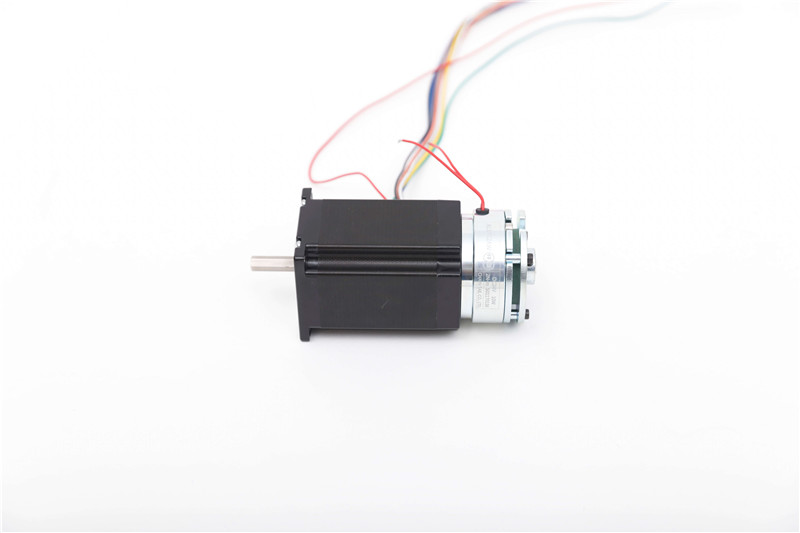

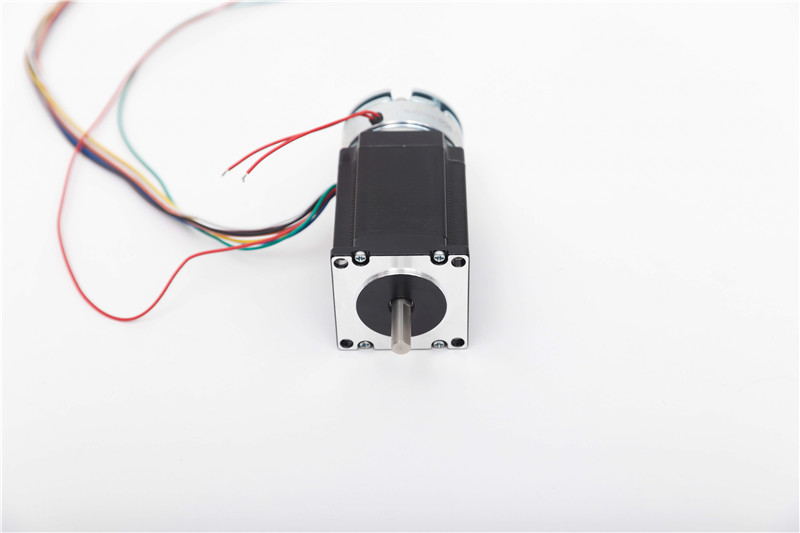

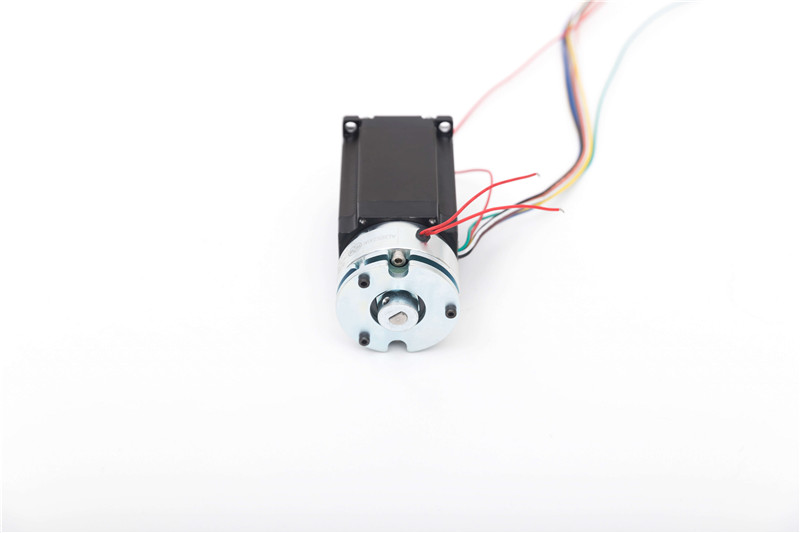

Brushless dc servo motorBrushless dcstepping motor
| Model | Step angle | Motor Length (L) | Rated voltage | Rated Current | Phase Resistance | Phase Inductance | Holding Torque | Lead Wire | Rotor inertia | Motor Weight |
| ( °) | mm | ( V) | (A) | ( Ω ) | (m H) | ( N m) | (NO) | ( kg·cm²) | ( kg ) | |
| 57H256-288-ZD | 56 | 2.8 | 0.8 | 1.2 | 1 | 8 | 0.28 | 0.7 | ||
| 57H276-288-ZD | 76 | 2.8 | 1 | 1.8 | 1.8 | 8 | 0.44 | 1 | ||
| 57H280-408-ZD | 80 | 4 | 0.7 | 1.8 | 2 | 8 | 0.48 | 1.1 |
Mode | shaft | keyway |
| 57H256-288 | ￠8 | platform0.8X15 |
| 57H276-288 | ￠8 | platform0.8X15 |
| 57H280-408 | ￠8 | platform0.8X15 |
8-wiremotorwiring
| connection method | phase sequence | color | Corresponds to the phase sequence of the drive |
| In series connection | A | red | A |
| C- | black | A- | |
| B | white | B | |
| D- | green | B- | |
| A- and C Connected dangling | Yellow and blue are suspended | ||
| B- and D Connected dangling | Brown and orange are suspended | ||
| And the connecting method | AC | red and blue | A |
| AC- | yellow and black | A- | |
| BD | white and brown | B | |
| BD- | orange and green | B- |
