brushless DC motor Brushless DC motor

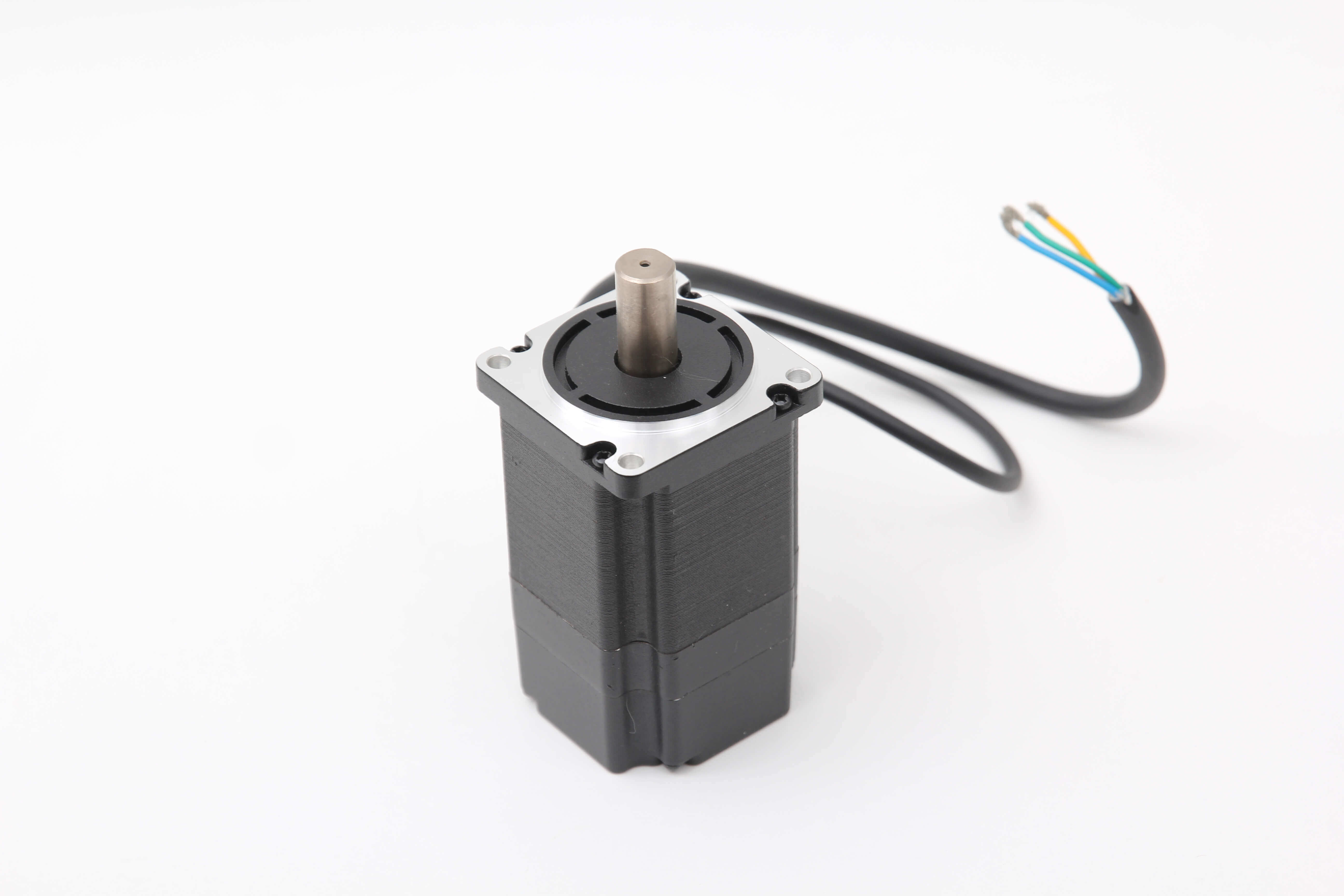

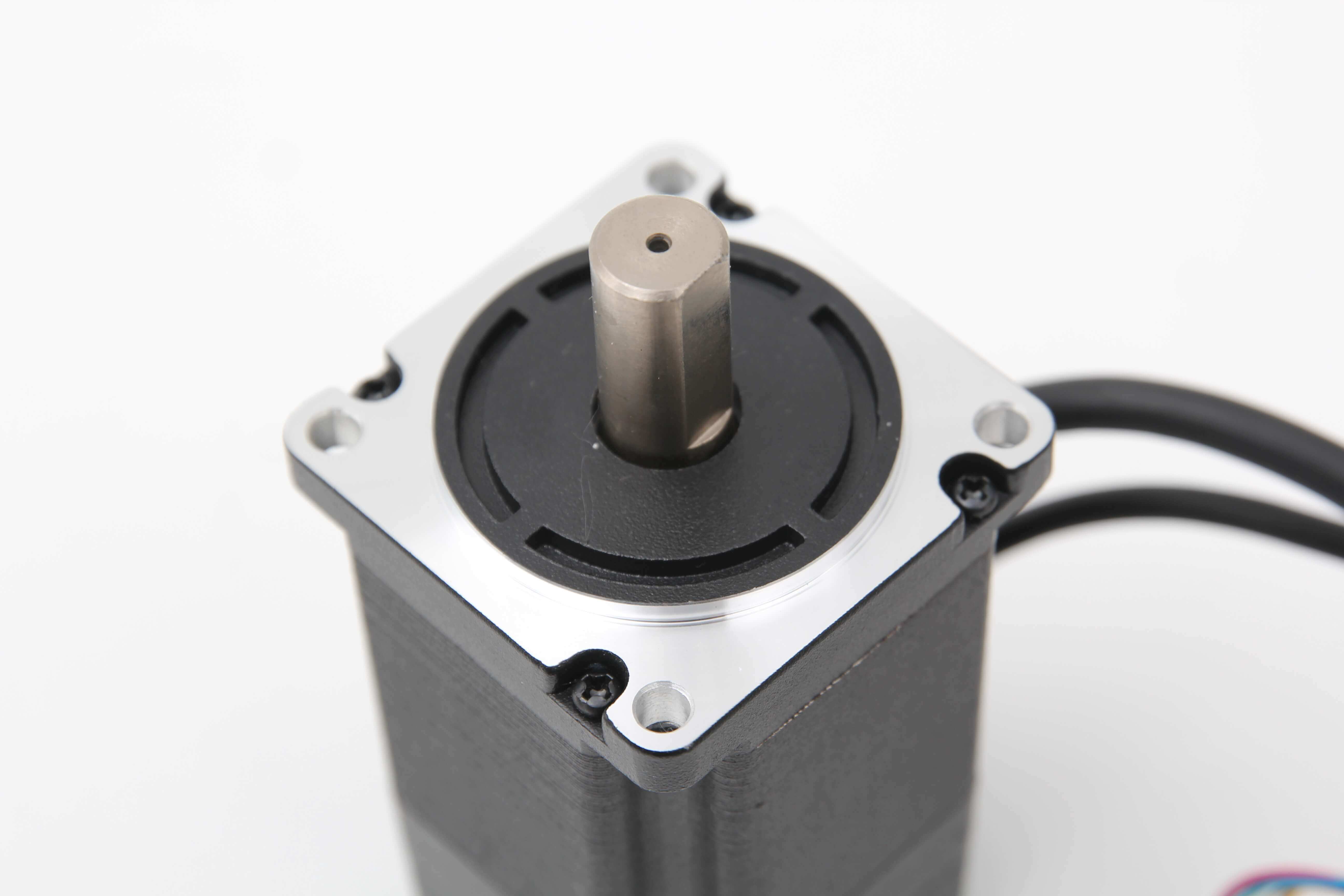

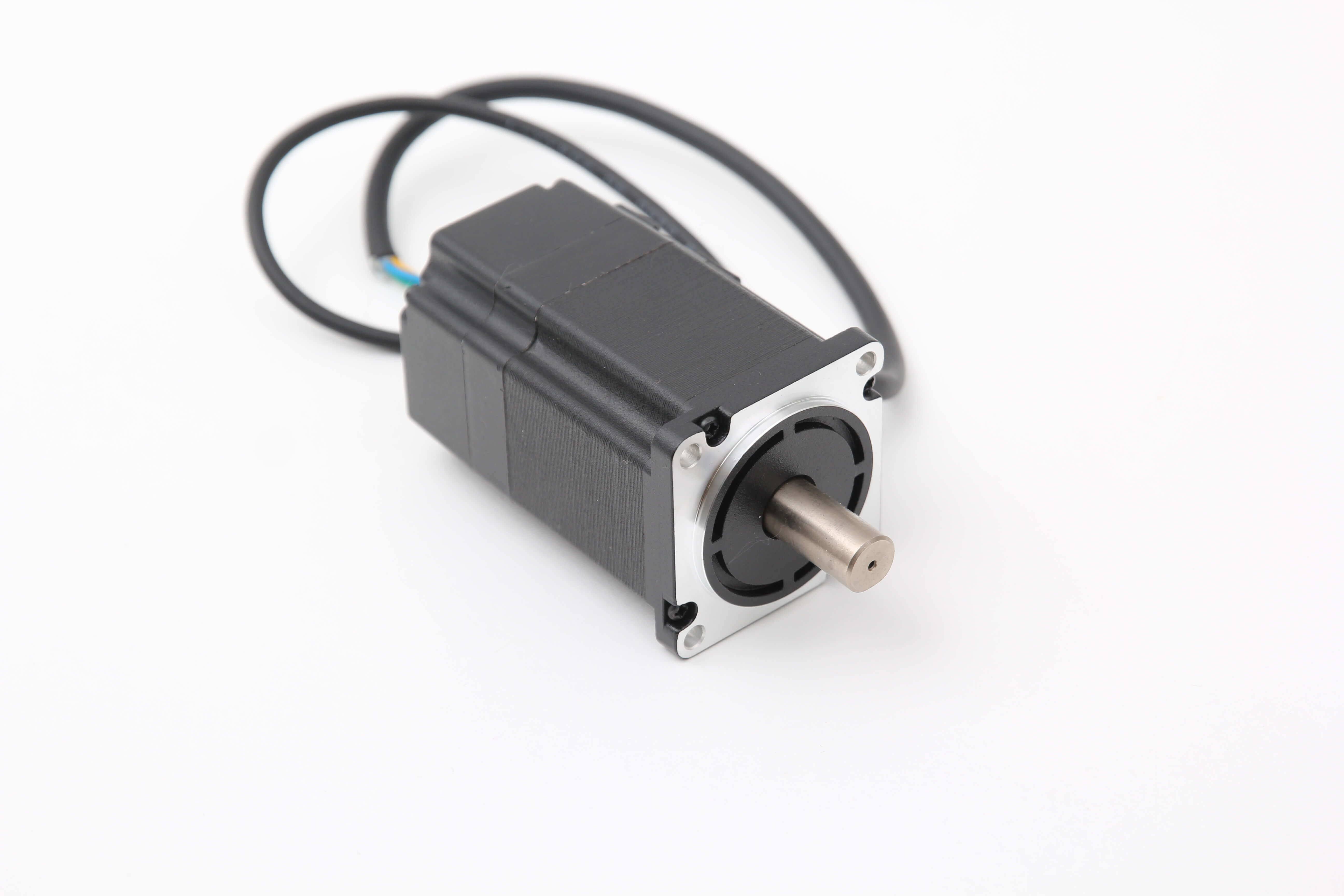

60BL Brushless DC motor
keyword : 60BL Brushless DC motor
description : Products are widely used in the field of industrial automation, in addition to a certain domestic market share, but also exported to foreign countries.
18151207805

General Specifications

Winding TypeStar
electrical degree120℃ electrical angle
Insulation ClassB
Ambient Temperature Range-20℃~+50℃
Insulation Resistance100MΩMin.500VC DC
Dielectric Strength700V AC 1 minute


Electrical Specifications

Model60BL50-24060BL70-24060BL90-44060BL110-44060BL110-640
Number of Poles8
Number of Phases3
Nominal voltage VDC24244848310
Rated speed        RPM3000
Rated Torque      N-m0.320.640.961.281.28
RatedCurrent    Amps5.5118.3111.7
OutputPower       Watts100200300400400
Peak Tourque     N-m11.922.883.843.84
Peak Current    Amps16.53333335.1
Torqueconstant   N-m/A0.060.060.090.120.76
BackEMF   V/kRPM4.24.26.48.455
Rotor inertia   g·cm²0.240.480.720.960.96
Body Length (L)    mm7899120141141
Mass  kg0.851.251.652.052.05

Caution 1: Peak (Stall) Torque is provided for the purpose of performance calculations only. Operate near, or at, a stalled condition will result in motor damaged.

Note: We can also manufacture products according to customer's requirements.

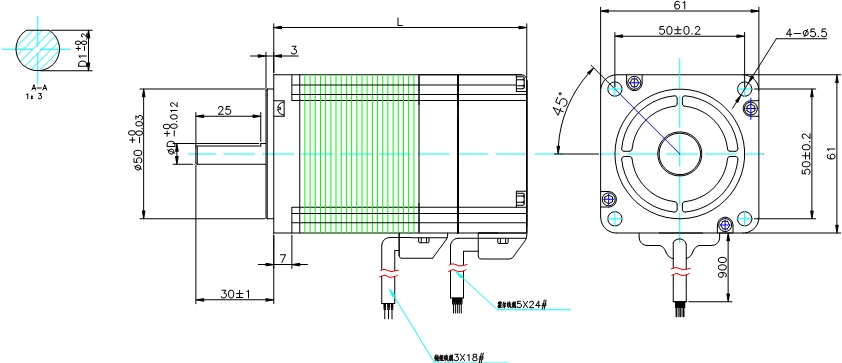

Outside drawing

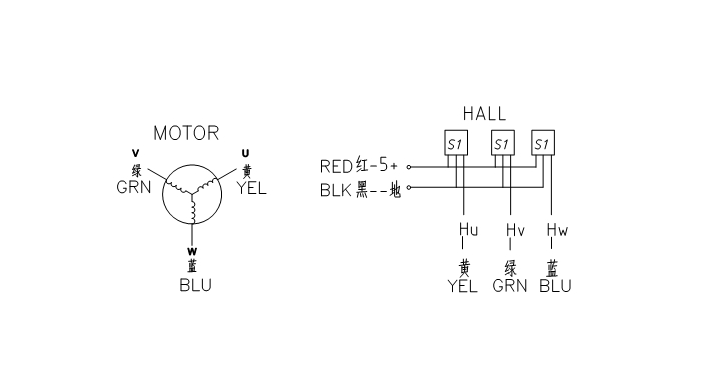

Wiring diagram

1556268033441150
