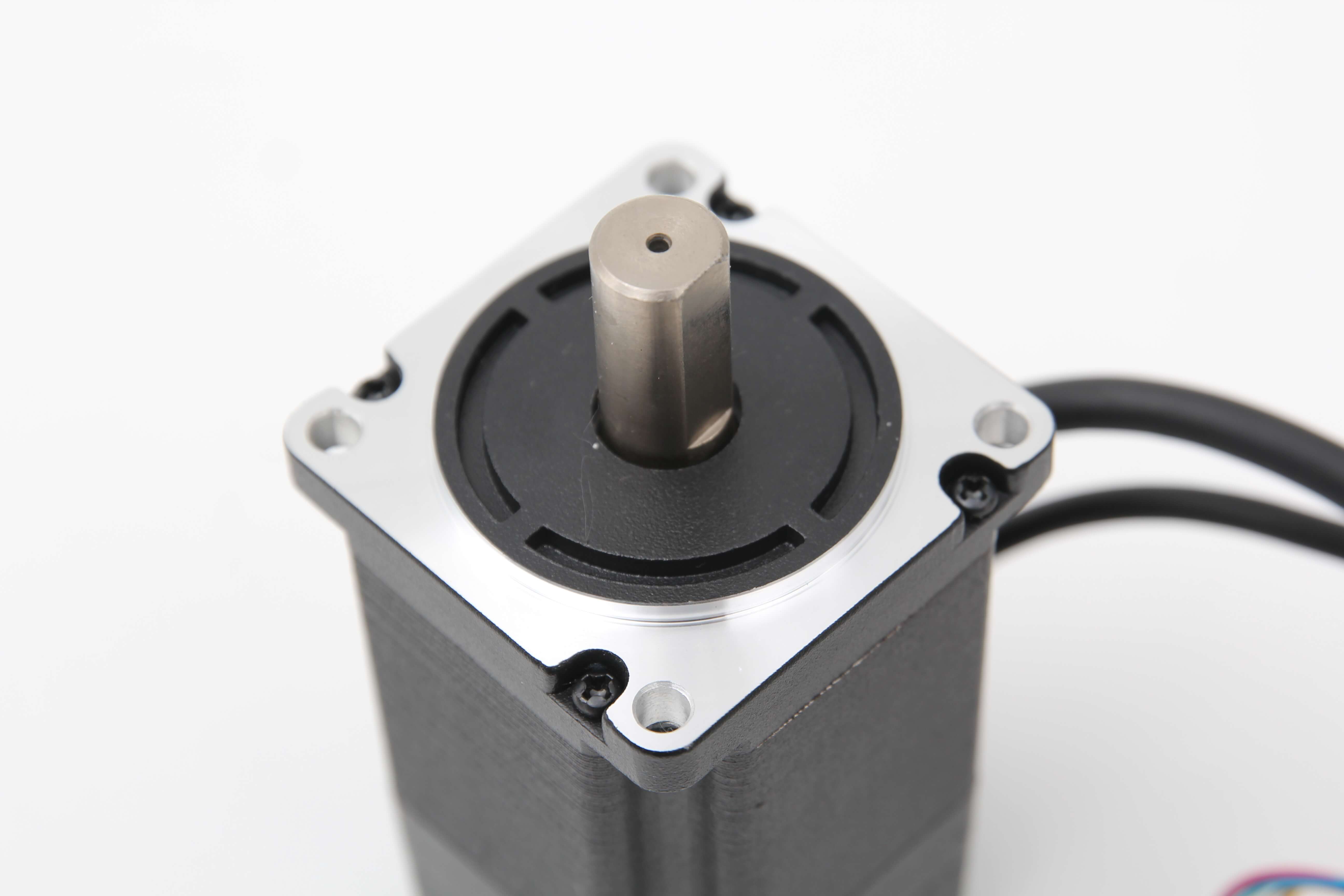

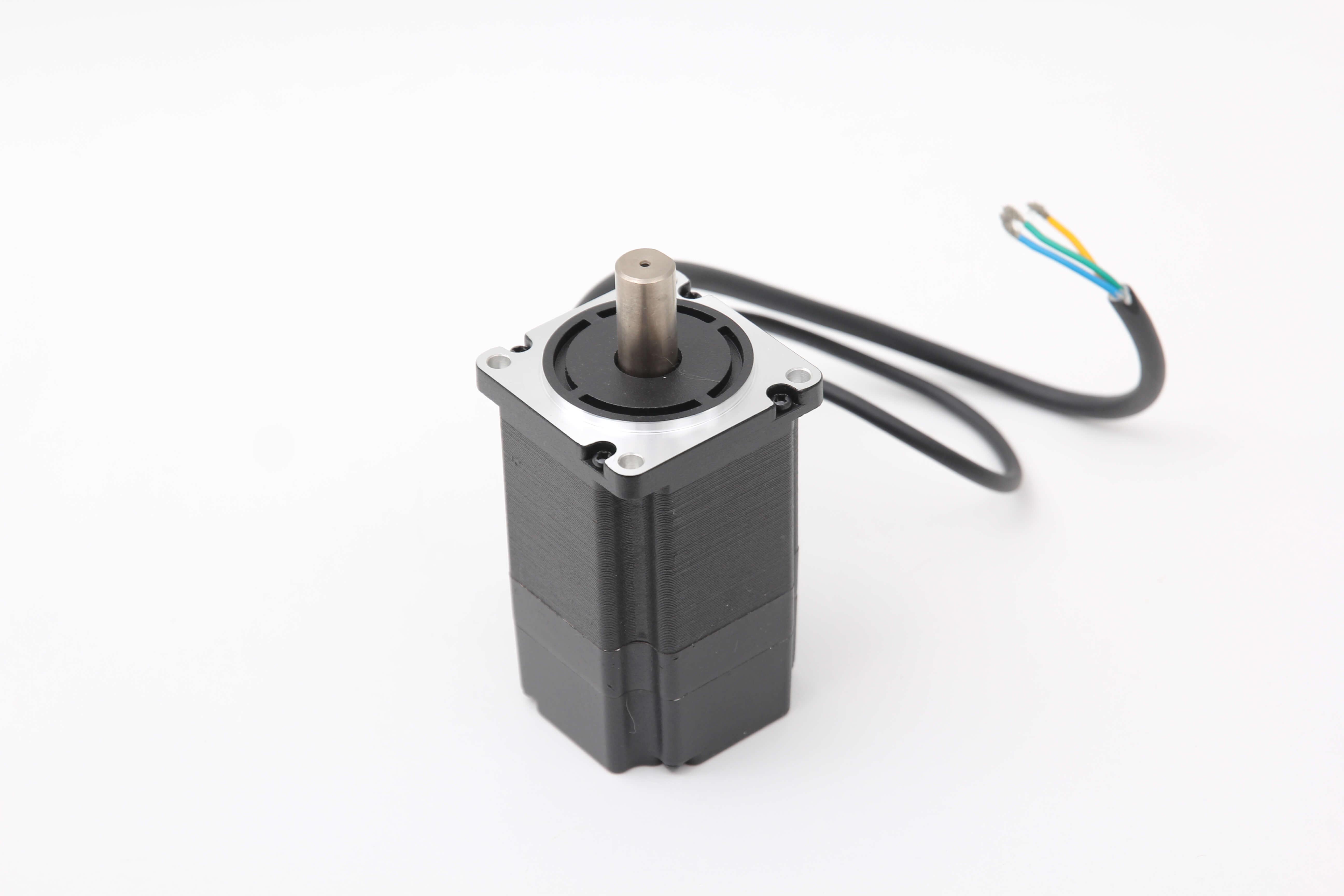

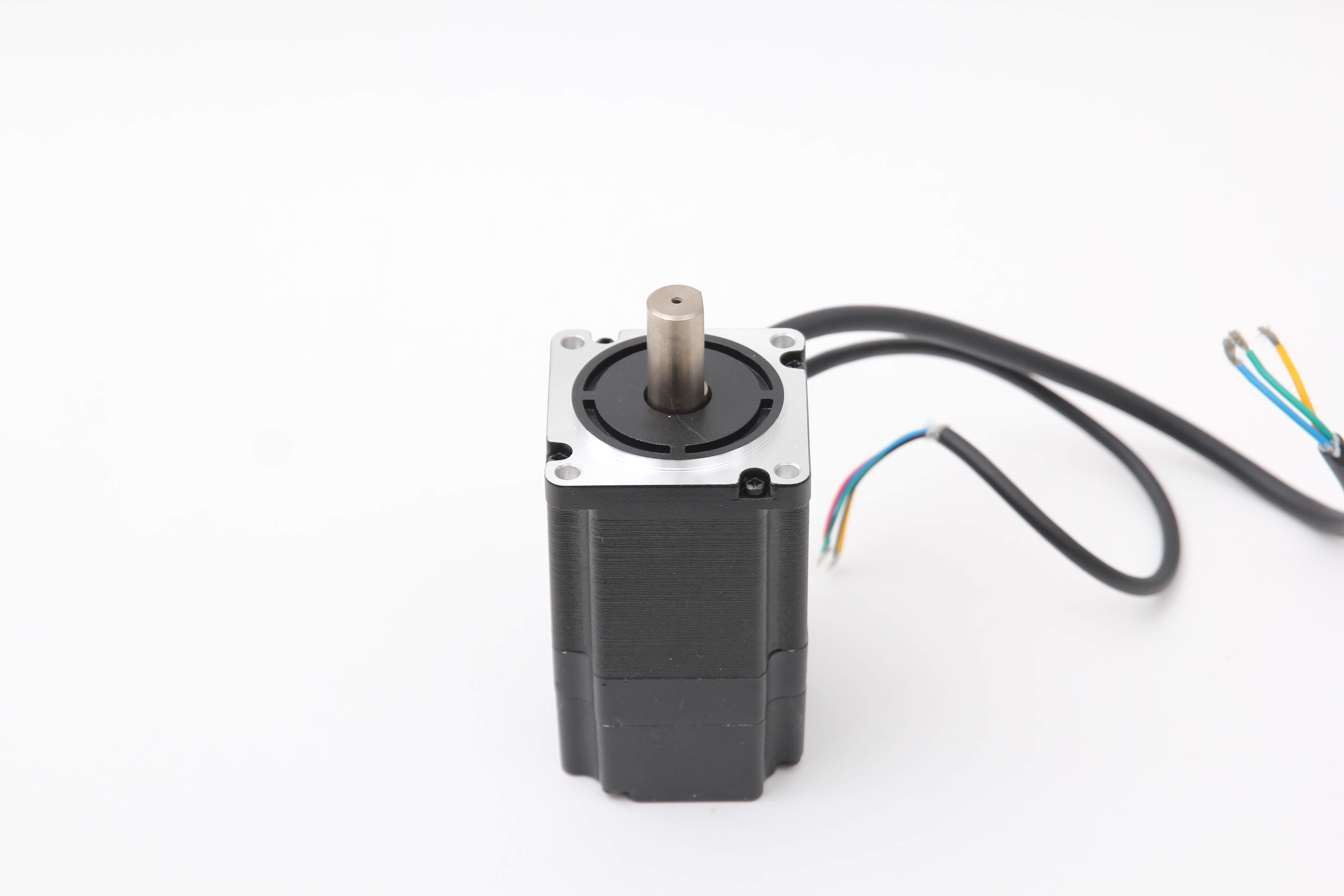

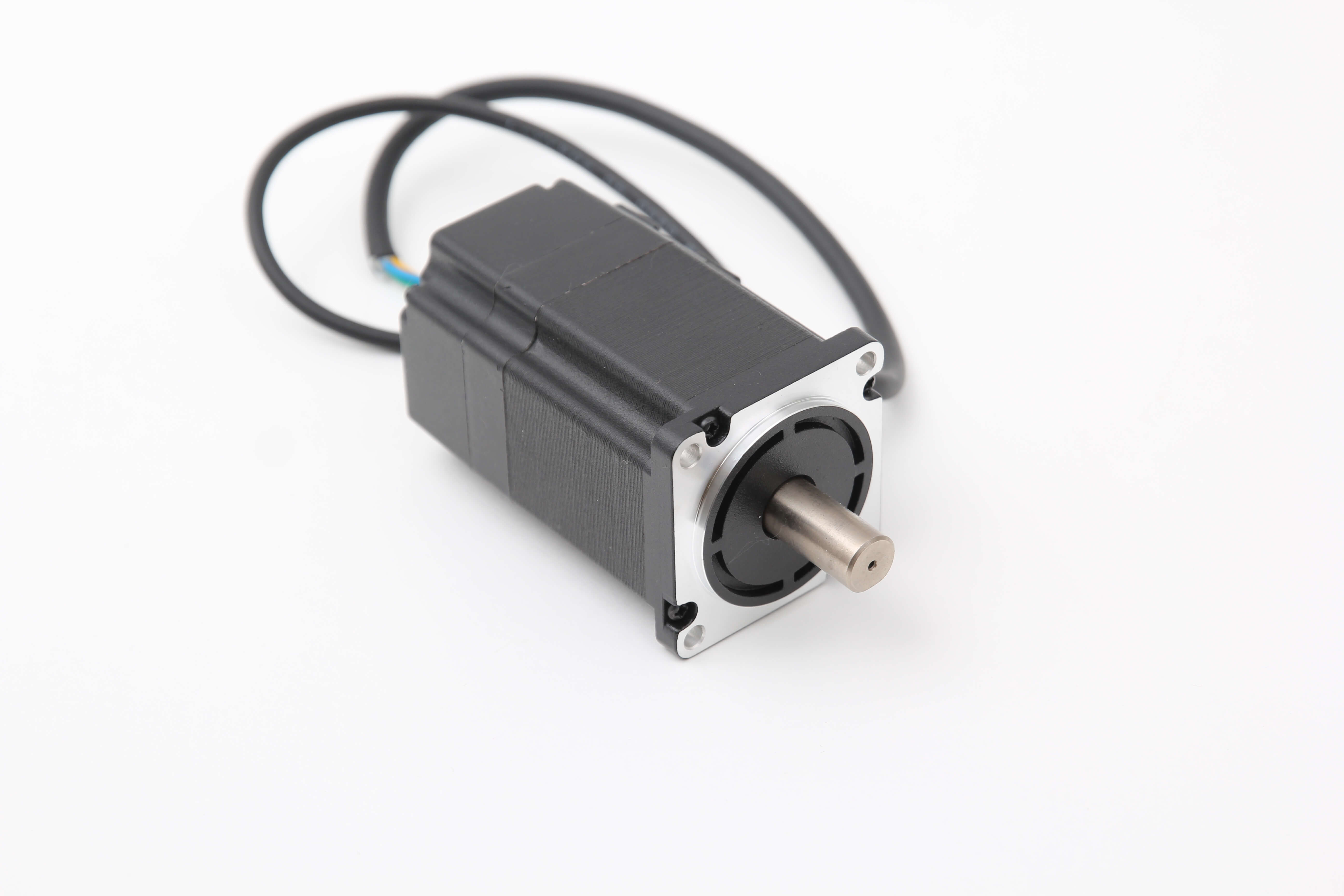

Brushless dc servo motorBrushless dcstepping motor
| Winding Type | Star |
| electrical degree | 120℃ electrical angle |
| Insulation Class | B |
| Ambient Temperature Range | -20℃~+50℃ |
| Insulation Resistance | 100MΩMin.500VC DC |
| Dielectric Strength | 700V AC 1 minute |
| Model | 60BL50-240-1000Z | 60BL70-240-1000Z | 60BL90-440-1000Z | 60BL110-440-1000Z |
| Number of Poles | 8 | |||
| Number of Phases | 3 | 3 | 3 | 3 |
| Nominal voltage VDC | 24 | 24 | 48 | 48 |
| Rated speed RPM | 3000 | 3000 | 3000 | 3000 |
| Rated Torque N-m | 0.32 | 0.64 | 0.96 | 1.28 |
| RatedCurrent Amps | 5.5 | 11 | 8.4 | 11 |
| OutputPower Watts | 100 | 200 | 300 | 400 |
| Peak Tourque N-m | 1 | 1.92 | 2.88 | 3.84 |
| Peak Current Amps | 16.5 | 33 | 25.4 | 36 |
| Torqueconstant N-m/A | 0.06 | 0.06 | 0.12 | 0.12 |
| BackEMF V/kRPM | 4.2 | 4.2 | 8.4 | 8.4 |
| Rotor inertia g·cm² | 0.24 | 0.48 | 0.72 | 0.96 |

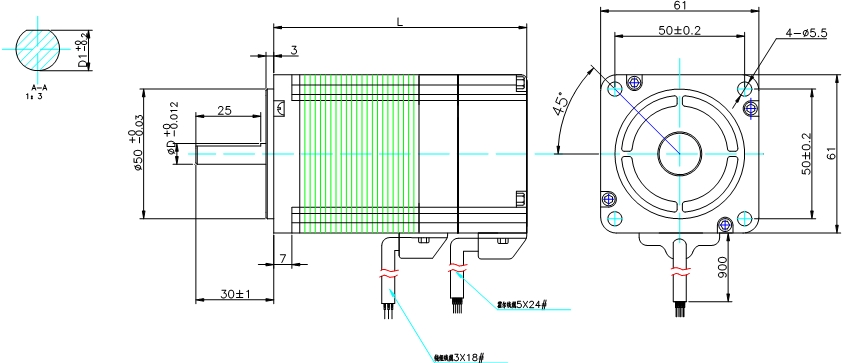

| Body Length (L) mm | 78 | 99 | 120 | 141 |
| Mass kg | 0.85 | 1.25 | 1.65 | 2.05 |
| encoder | 1000P/R(2500P/R可选) | |||
Caution 1: Peak (Stall) Torque is provided for the purpose of performance calculations only. Operate near, or at, a stalled condition will result in motor damaged.
Note: We can also manufacture products according to customer's requirements.
Motor wiring sequence
| Encoder connection | Electrical wiring | ||||||||||||||||
| serial number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 1 | 2 | 3 |
| color | red | black | yellow | yellow and black | green | green and black | blue | blue and black | brown | brown and black | grey | grey and black | white | white and black | yellow | green | blue |
| phase sequence | +5V | GND | U+ | U- | V+ | V- | W+ | W- | A+ | A- | B+ | B- | Z+ | Z- | U | V | W |
Reverse potential phase sequence diagram
Technical specification of encoder
