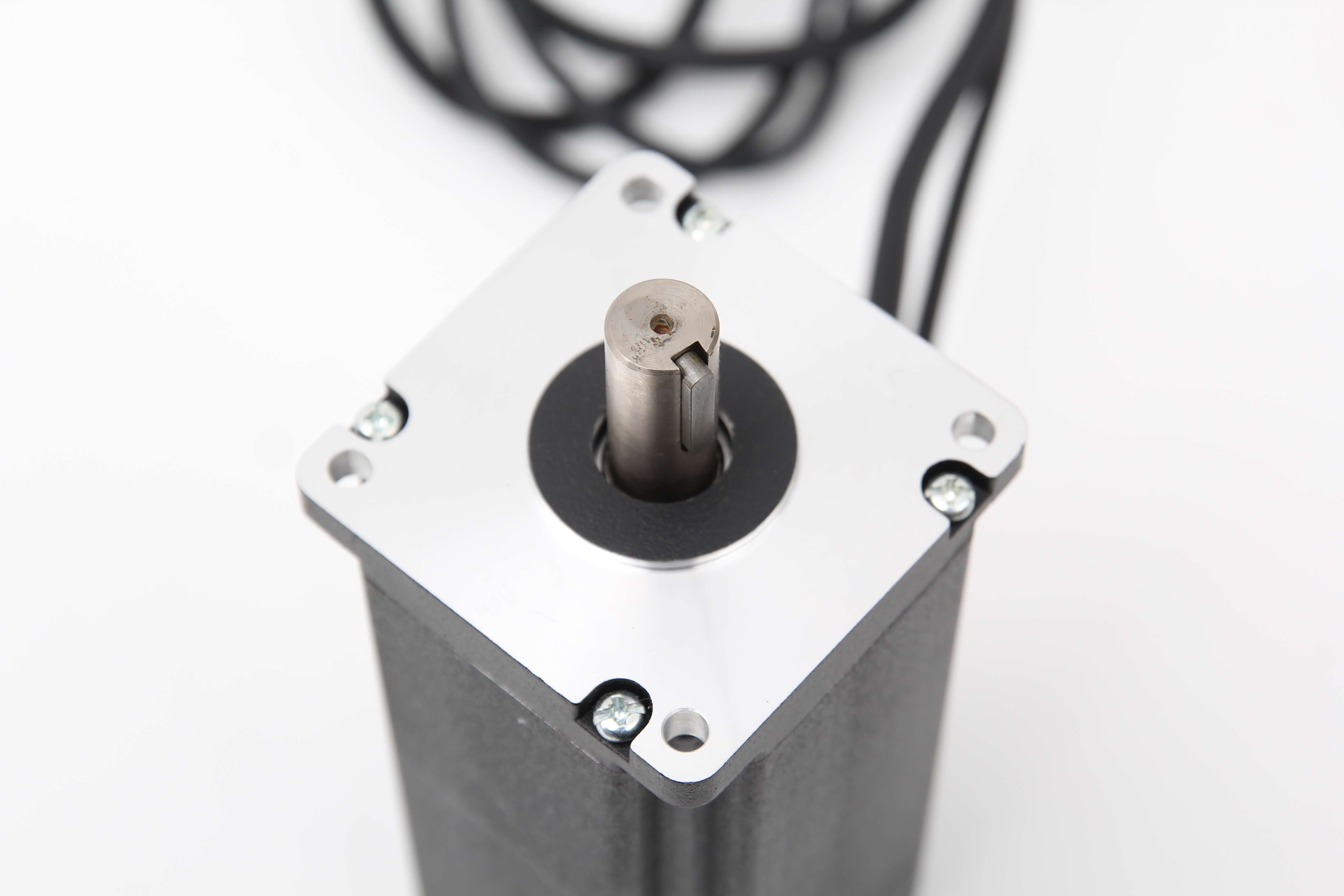

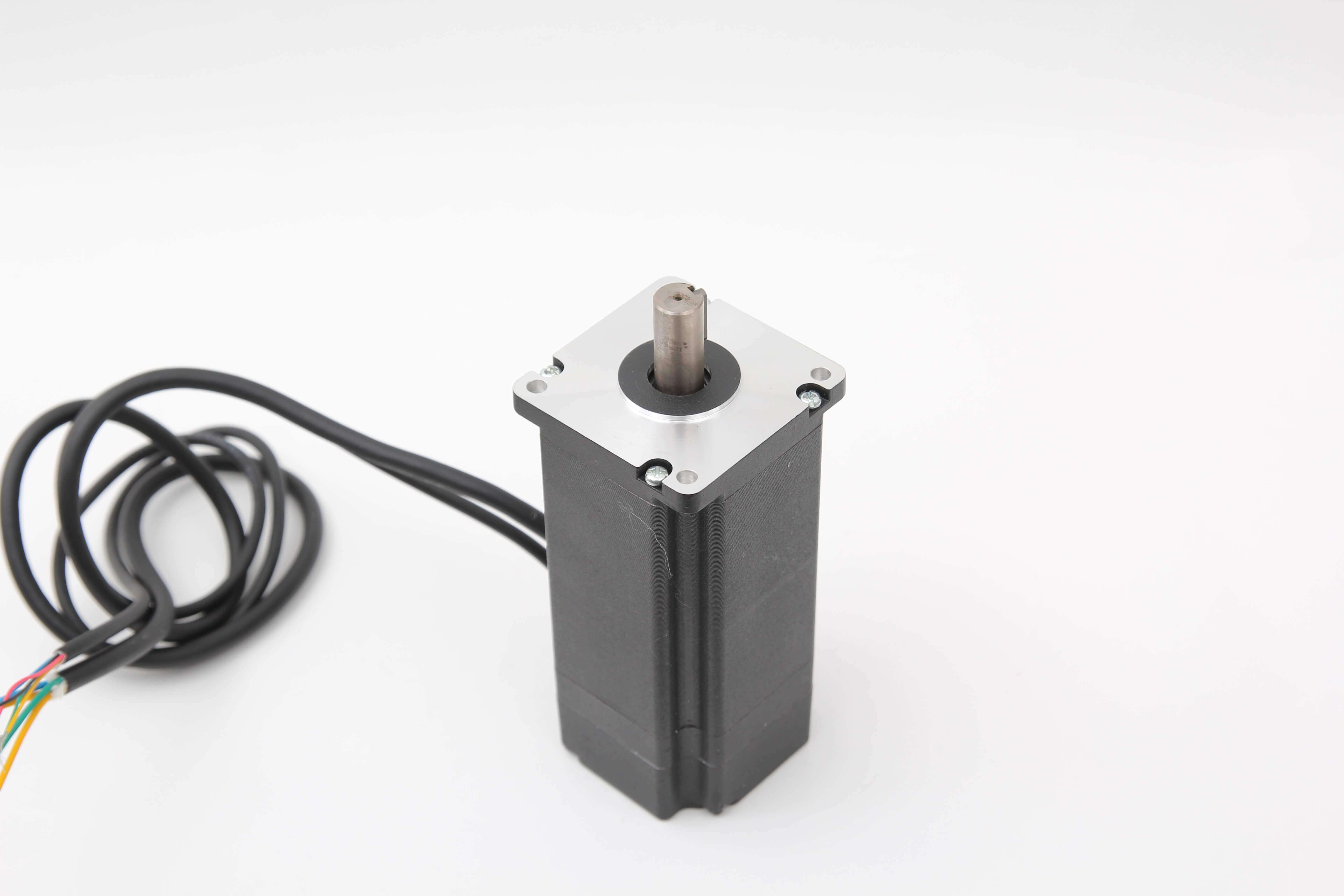

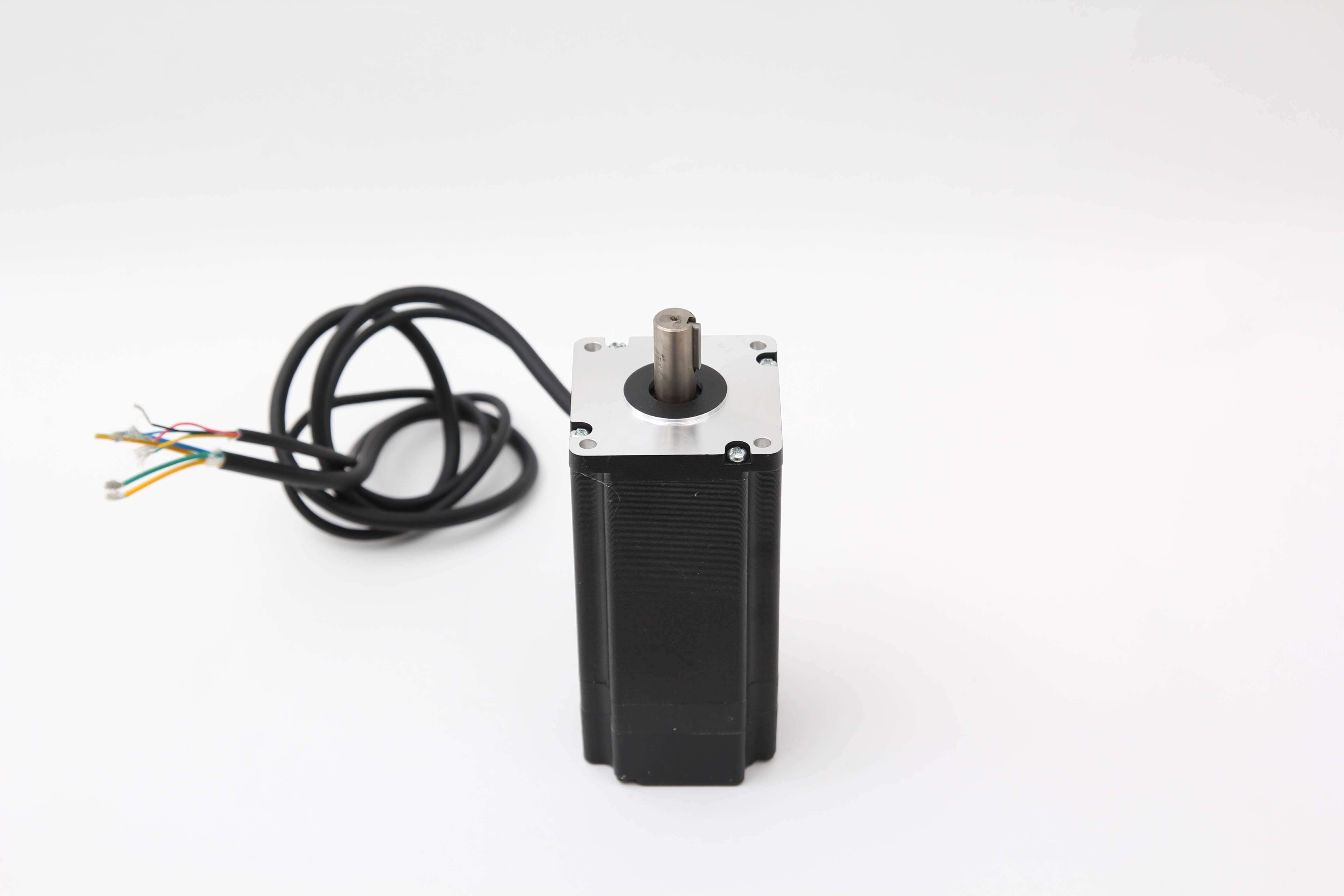

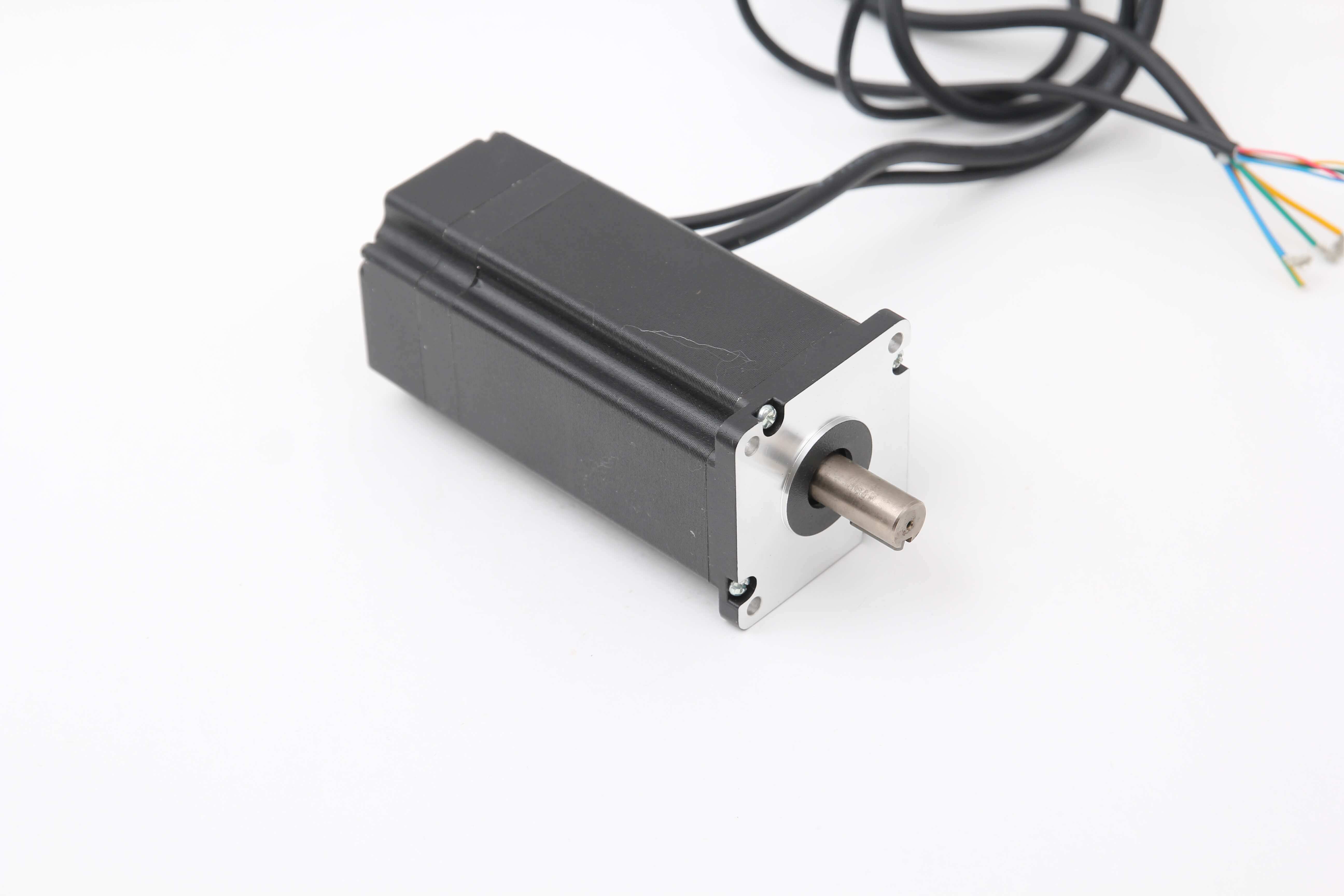

70BL brushless DC motor
keyword : 70BL brushless DC motor
description : Products are widely used in the field of industrial automation, in addition to a certain domestic market share, but also exported to foreign countries.
18151207805

General Specifications

Winding TypeStar
electrical degree120℃ electrical angle
Insulation ClassB
Ambient Temperature Range-20℃~+50℃
Insulation Resistance100MΩMin.500VC DC
Dielectric Strength700V AC 1 minute


Electrical Specifications

Model70BL60-24070BL60-44070BL90-44070BL90-64070BL120-640
Number of Poles8
Number of Phases3
Nominal voltage VDC244848310310
Rated speed        RPM3000
Rated Torque      N-m0.50.5111.5
RatedCurrent    Amps8.74.48.71.42.1
OutputPower       Watts157157313313470
Peak Tourque     N-m1.51.5334.5
Peak Current    Amps2613.2264.26.3
Torqueconstant   N-m/A0.060.120.120.720.72
BackEMF   V/kRPM4.28.48.45555
Rotor inertia   g·cm²0.380.380.760.761.14
Body Length (L)    mm8686116116146
Mass  kg1.31.32.12.12.8

Caution 1: Peak (Stall) Torque is provided for the purpose of performance calculations only. Operate near, or at, a stalled condition will result in motor damaged.

Note: We can also manufacture products according to customer's requirements.


Outside drawing

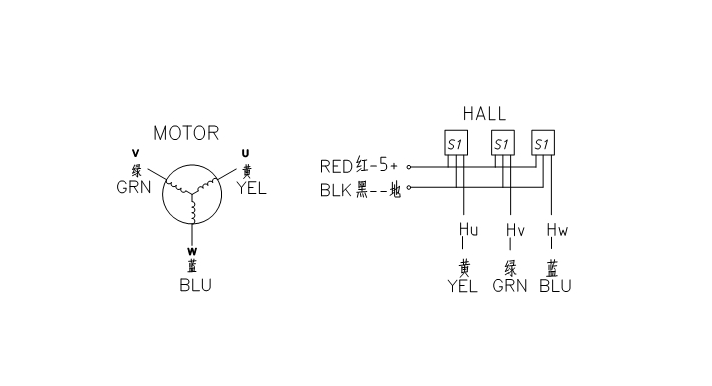

Wiring diagram

1556267844(1)
